Notations and data

1.1Notations¶

This section aims at providing the formal mathematical conventions that will be used throughout the book.

Bold notations indicate vectors and matrices. We use capital letters for matrices and lower case letters for vectors. $\mathbf{v}'$ and $\mathbf{M}'$ denote the transposes of $\mathbf{v}$ and $\mathbf{M}$. $\mathbf{M}=[m]_{i,j}$ where $i$ is the row index and $j$ the column index.

We will work with two notations in parallel. The first one is the pure machine learning notation in which the labels (also called output, dependent variables or predicted variables) $\mathbf{y}=y_i$ are approximated by functions of features $\mathbf{X}_i=(x_{i,1},\dots,x_{i,K})$. The dimension of the features matrix $\mathbf{X}$ is $I\times K$: there are $I$ instances, records, or observations and each one of them has $K$ attributes, features, inputs, or predictors which will serve as independent and explanatory variables (all these terms will be used interchangeably). Sometimes, to ease notations, we will write $\textbf{x}_i$ for one instance (one row) of $\textbf{X}$ or $\textbf{x}_k$ for one (feature) column vector of $\textbf{X}$.

The second notation type pertains to finance and will directly relate to the first. We will often work with discrete returns $r_{t,n}=p_{t,n}/p_{t-1,n}-1$ computed from price data. Here $t$ is the time index and $n$ the asset index. Unless specified otherwise, the return is always computed over one period, though this period can sometimes be one month or one year. Whenever confusion might occur, we will specify other notations for returns.

In line with our previous conventions, the number of return dates will be $T$ and the number of assets, $N$. The features or characteristics of assets will be denoted with $x_{t,n}^{(k)}$: it is the time-$t$ value of the $k^{th}$ attribute of firm or asset $n$. In stacked notation, $\mathbf{x}_{t,n}$ will stand for the vector of characteristics of asset $n$ at time $t$. Moreover, $\mathbf{r}_t$ stands for all returns at time $t$ while $\mathbf{r}_n$ stands for all returns of asset $n$. Often, returns will play the role of the dependent variable, or label (in ML terms). For the riskless asset, we will use the notation $r_{t,f}$.

The link between the two notations will most of the time be the following. One instance (or observation) $i$ will consist of one couple ($t,n$) of one particular date and one particular firm (if the data is perfectly rectangular with no missing field,$I=T\times N$). The label will usually be some performance measure of the firm computed over some future period, while the features will consist of the firm attributes at time-$t$. Hence, the purpose of the machine learning engine in factor investing will be to determine the model that maps the time-$t$ characteristics of firms to their future performance.

In terms of canonical matrices: $\mathbf{I}_N$ will denote the $(N\times N)$ identity matrix.

From the probabilistic literature, we employ the expectation operator $\mathbb{E}[\cdot]$ and the conditional expectation $\mathbb{E}_t[\cdot]$, where the corresponding filtration $\mathcal{F}_t$ corresponds to all information available at time . More precisely, $\mathbb{E}_t[\cdot]=\mathbb{E}[\cdot | \mathcal{F}_t]$ $\mathbb{V}[\cdot]$ will denote the variance operator. Depending on the context, probabilities will be written simply $P$, but sometimes we will use the heavier notation $\mathbb{P}$. Probability density functions (pdfs) will be denoted with lowercase letters ($f$) and cumulative distribution functions (cdfs) with uppercase letters ($F$). We will write equality in distribution as $X \overset{d}{=}Y$, which is equivalent to $F_X(z)=F_Y(z)$ for all $z$ on the support of the variables. For a random process $X_t$, we say that it is stationary if the law of $X_t$ is constant through time, i.e., $X_t\overset{d}{=}X_s$, where $\overset{d}{=}$ means equality in distribution.

Sometimes, asymptotic behaviors will be characterized with the usual Landau notation $o(\cdot)$ and $O(\cdot)$. The symbol $\propto$ refers to proportionality: $x\propto y$ means that $x$ is proportional to $y$. With respect to derivatives, we use the standard notation $\frac{\partial}{\partial x}$ when differentiating with respect to $x$. We resort to the compact symbol $\nabla$ when all derivatives are computed (gradient vector).

In equations, the left-hand side and right-hand side can be written more compactly: l.h.s. and r.h.s., respectively.

Finally, we turn to functions. We list a few below:

• $1_{\{x \}}$: the indicator function of the condition $x$, which is equal to one if $x$ is true and to zero otherwise.

• $\phi(\cdot)$ and $\Phi(\cdot)$ are the standard Gaussian pdf and cdf.

• card $(\cdot)=\#(\cdot)$ are two notations for the cardinal function which evaluates the number of elements in a given set (provided as argument of the function).

• $\lfloor \cdot \rfloor$ is the integer part function.

• for a real number $x$,$[x]^+$ is the positive part of $x$, that is max $\max(0,x)$

• tanh$(\cdot)$ is the hyperbolic tangent: tanh$(x)=\frac{e^x-e^{-x}}{e^x+e^{-x}}$

• ReLu$(\cdot)$ is the rectified linear unit: ReLu$(x)=\max(0,x)$

• s$(\cdot)$ will be the softmax function: s$(\textbf{x})_i=\frac{e^{x_i}}{\sum_{j=1}^Je^{x_j}}$, where the subscript $i$ refers to the $i^{th}$ element of the vector.

import pandas as pd                                  # Activate the data science package
data_raw=pd.read_csv('factors_map_all_US.csv')       # Load the data
idx_date=data_raw.index[(data_raw['date'] > '1995-12-31') & (data_raw['date'] < '2025-06-01')].tolist() # creating and index to retrive the dates
data_ml=data_raw.iloc[idx_date]                      # filtering the dataset according to date index
data_ml = data_ml.drop(columns = 'Unnamed: 0')

data_ml.iloc[0:6,0:6]

data_ml.shape

data_ml.columns

import matplotlib.pyplot as plt

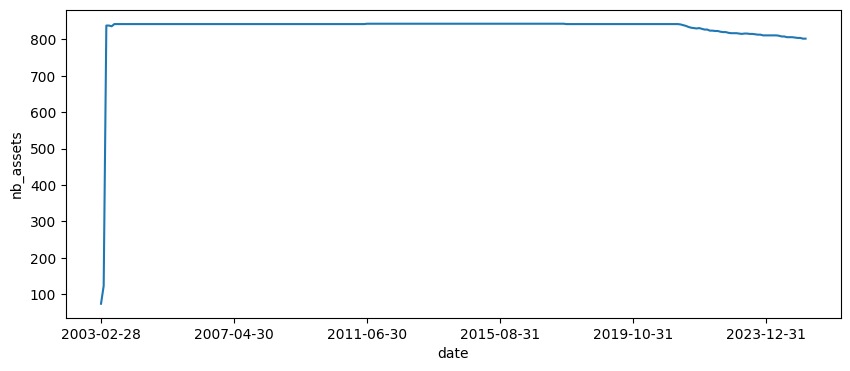

pd.Series(data_ml.groupby('date').size()).plot(figsize=(10,4)) # counting the number of assets for each date
plt.ylabel('nb_assets')                                        # adding the ylabel and plotting

(data_ml[["R1M", "R3M", "R6M", "R12M"]]
    .describe()
    .T
    .loc[:, ["mean", "std", "min", "25%", "50%", "75%", "max"]]
    .round(3))

features=list(data_ml.iloc[:,3:125].columns)
# Keep the feature's column names (hard-coded, beware!)
features_short =["Div_yld", "EPS", "Size12m",
                 "Mom_LT", "Ocf", "PB", "Vol_LT"]

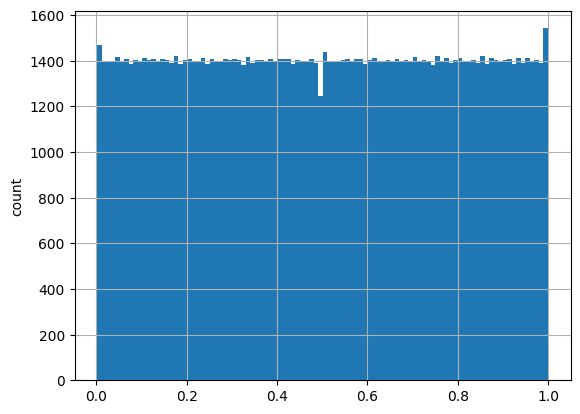

data_ml.query('Div_yld != 0.5')['Div_yld'].hist(bins=100)
# using the hist
plt.ylabel('count')

import numpy as np
df_median=[]  #creating empty placeholder for temporary dataframe
df=[]         #creating empty placeholder for temporary dataframe
df_median=data_ml[['date','R1M','R12M']].groupby(
    ['date']).median() # computings medians for both labels at each date
df_median.rename(
    columns={"R1M": "R1M_median",
             "R12M": "R12M_median"},inplace=True)
df = pd.merge(data_ml,df_median,how='left', on=['date'])
# join the dataframes
data_ml['R1M_C'] = np.where( # Create the categorical labels
    df['R1M'] > df['R1M_median'], 1.0, 0.0)
data_ml['R12M_C'] = np.where( # Create the categorical labels
    df['R12M'] > df['R12M_median'], 1.0, 0.0)

separation_date = "2017-01-15"
idx_train=data_ml.index[(data_ml['date']< separation_date)].tolist()
idx_test=data_ml.index[(data_ml['date']>= separation_date)].tolist()

stock_ids_short=[]   # empty placeholder for temporary dataframe
stock_days=[]        # empty placeholder for temporary dataframe
stock_ids=data_ml['fsym_id'].unique() # A list of all stock_ids
stock_days=data_ml[['date','fsym_id']].groupby(
    ['fsym_id']).count().reset_index() # compute nbr data points/stock
stock_ids_short=stock_days.loc[
    stock_days['date'] == (stock_days['date'].max())]
# Stocks with full data
stock_ids_short=stock_ids_short['fsym_id'].unique()
# in order to get a list
is_stock_ids_short=data_ml['fsym_id'].isin(stock_ids_short)
returns=data_ml[is_stock_ids_short].pivot(
    index='date',columns='fsym_id',values='R1M') # returns matrix
returns.iloc[0:5,0:5]
